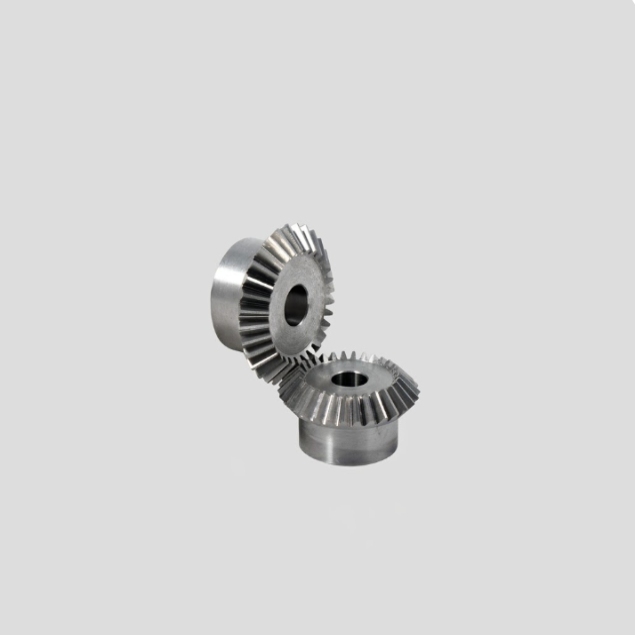

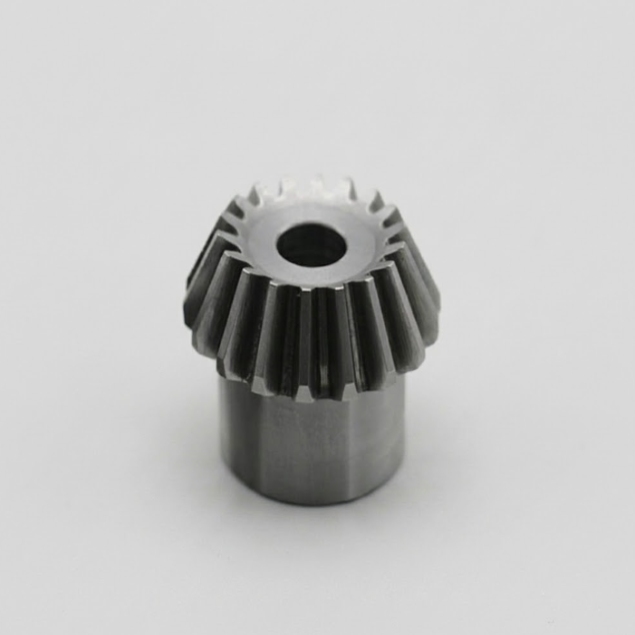

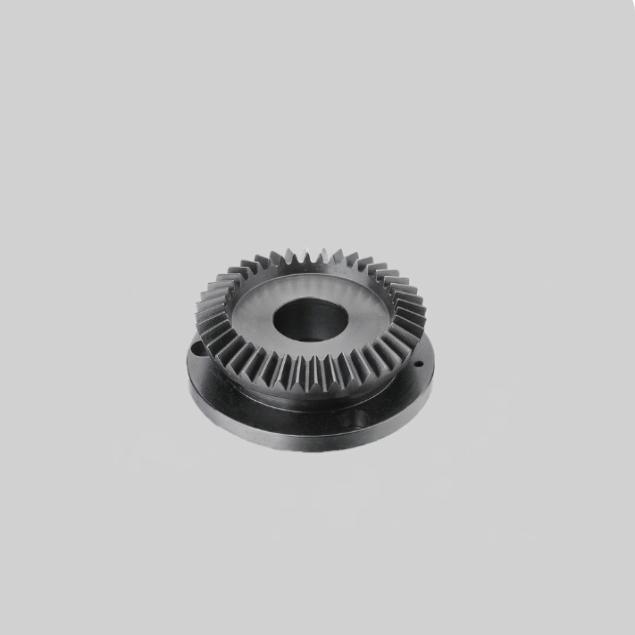

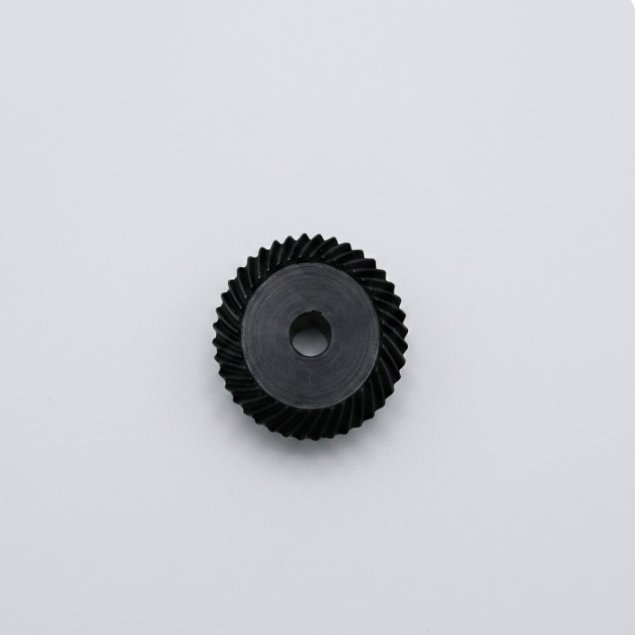

Engrenage conique hélicoïdal en acier inoxydable et aluminium noirci pour machines laser
Envoyer une demande maintenant
Position: Accueil > Centre de produits > Poulie d'engrenage et de distribution > Engrenage conique > Engrenages de transmission en acier moulé sous pression à spirale de haute précision pour moteur d'entraînement, pignon métallique
Engrenages de transmission en acier moulé sous pression à spirale de haute précision pour moteur d'entraînement, pignon métallique
Productfeatures:
Les engrenages de précision à filetage hélicoïdal moulés sous pression sont conçus pour répondre aux exigences rigoureuses des systèmes de transmission de puissance modernes. Destinés aux applications motorisées, ces engrenages garantissent un transfert de couple efficace, une grande précision de rotation et une durabilité à long terme dans une vaste gamme d'environnements industriels.
Avantages techniques
Haute précision dimensionnelle et tolérances serrées
Excellente résistance à l'usure et à la corrosion
Performances stables en fonctionnement continu
Maintenance et temps d'arrêt réduits
Compatibilité avec les conditions de vitesse et de charge élevées
Engrenage conique:
| Product Name | bevel gear |
| Material | Steel |
| shape | Bevel |
| warranty | 1.5 year |
| core components | PLC, Bearing, Motor, Pressure Vessel, Gear |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
Description du produit:
| Product name | Bevel Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Material preparation, normalizing, rough turning, quenching and tempering, semi fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi fine turning spiral surface, pliers (rest incomplete teeth), semi fine grinding outer circle, semi fine grinding spiral surface, grinding center hole, fine grinding outer circle, fine grinding spiral surface, finished product inspection |
| Applications | Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery |

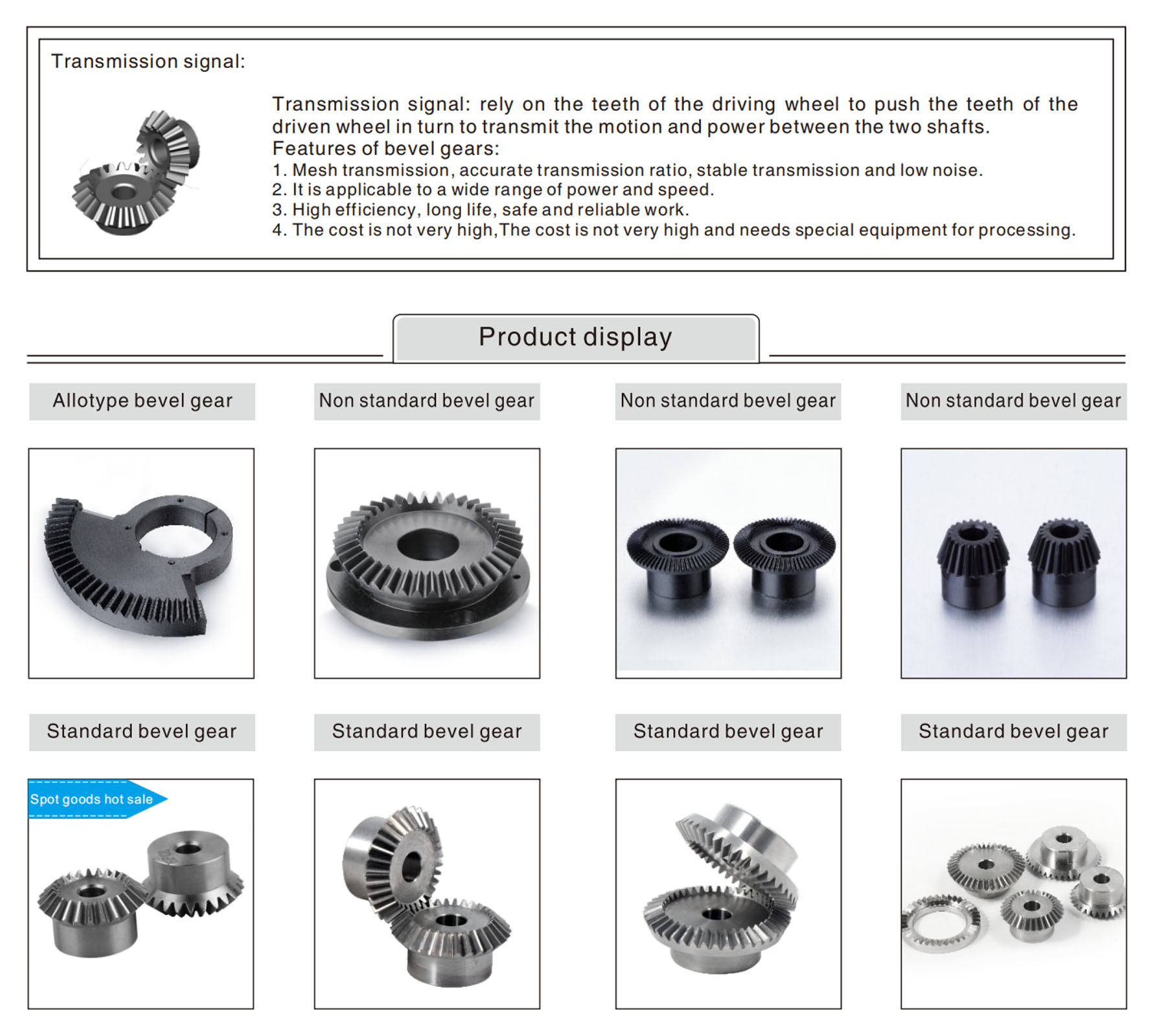

| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
Application
The High-Precision Spiral Hobbing Die-Cast Gear is a high-precision transmission gear manufactured using advanced spiral hobbing and die-casting technologies, ensuring exceptional performance in terms of both strength and wear resistance. Typically utilized in electric motor gear transmission systems, this gear effectively enhances power transmission efficiency, reduces noise levels, and extends service life.
